FIXED IND 330NH 9.6A 7.2MOHM SMD

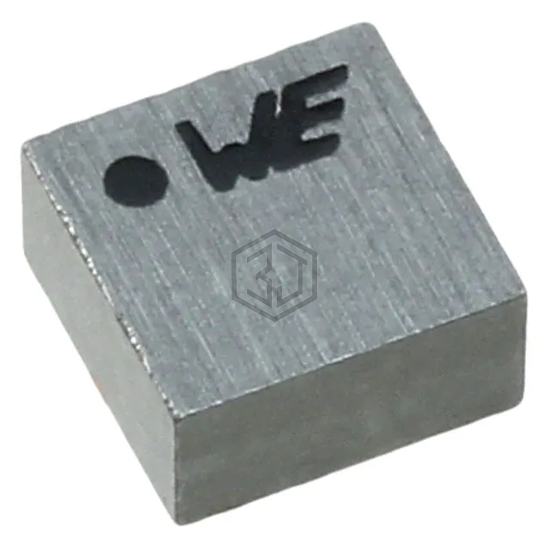

784383560033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 330NH 9.6A 7.2MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.6 A.
In Stock: 1,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Alloy |
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 9.6 A |
| Current - Saturation (Isat) | 12.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 115MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
