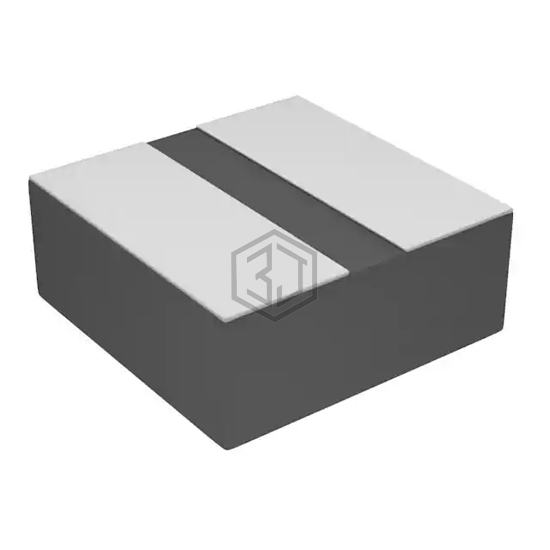

FIXED IND 5.6UH 1A 389 MOHM SMD
78438334056 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 5.6UH 1A 389 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1212 (3030 Metric), current rating (amps) 1 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Alloy |
| Inductance | 5.6 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 389mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 28MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | 3012 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for 78438334056 and get a quote within 24 hours.
