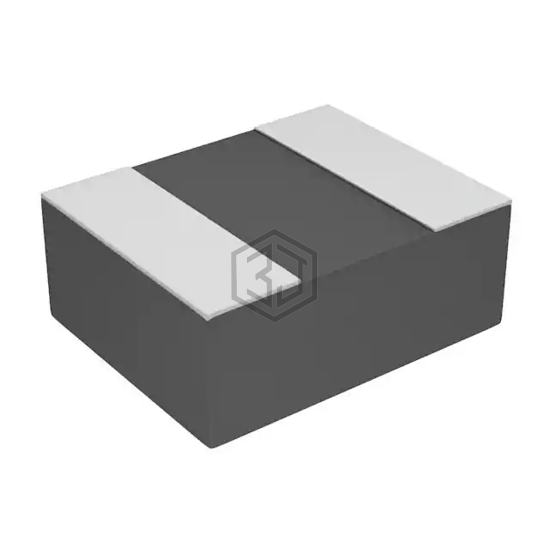

FIXED IND 8.2UH 700MA 743MOHM SM
78438323082 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 8.2UH 700MA 743MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 700 mA.
In Stock: 2,810
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Alloy |
| Inductance | 8.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 1.45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 743mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 27MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 2510 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for 78438323082 and get a quote within 24 hours.
