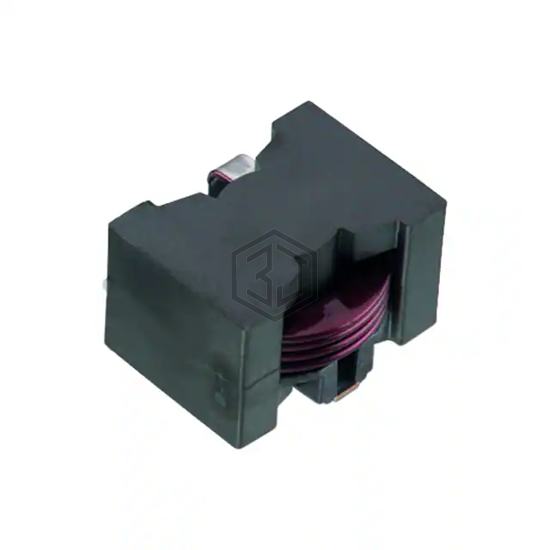

FIXED IND 4.7UH 38A 1.1 MOHM SMD
78436432047 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 4.7UH 38A 1.1 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 38 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 38 A |
| Current - Saturation (Isat) | 33A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 28MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.083" L x 1.083" W (27.50mm x 27.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
Submit your RFQ for 78436432047 and get a quote within 24 hours.
