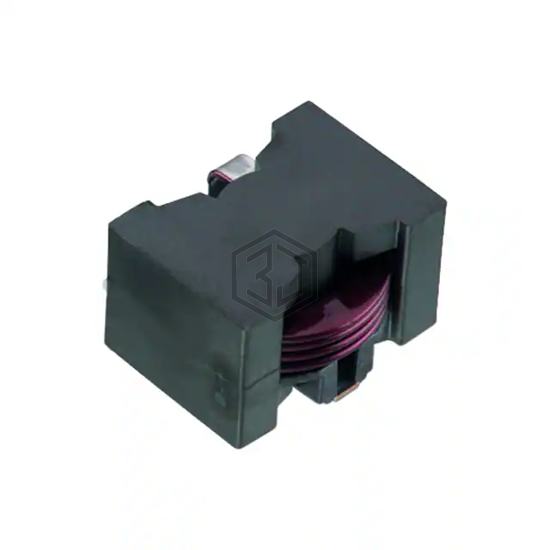

FIXED IND 1.5UH 47A 0.6 MOHM SMD
78436432015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5UH 47A 0.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 47 A.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 47 A |
| Current - Saturation (Isat) | 53A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 34MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.083" L x 1.083" W (27.50mm x 27.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
Submit your RFQ for 78436432015 and get a quote within 24 hours.
