WE-CHSA PERFORMANCE SMD HIGH CUR

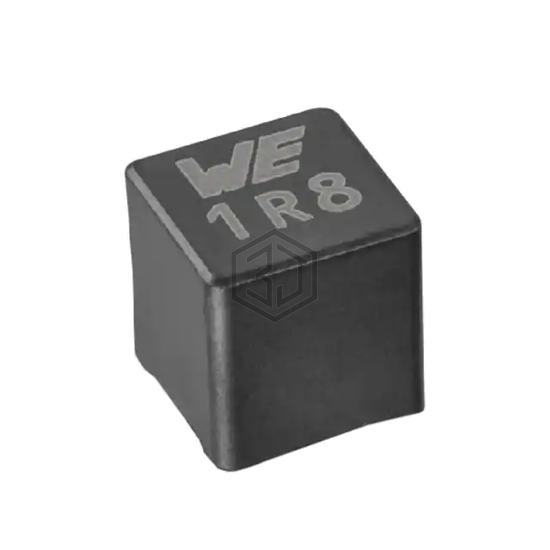

78433490036 is a Fixed Inductors manufactured by Würth Elektronik. WE-CHSA PERFORMANCE SMD HIGH CUR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 19 A.
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Alloy |
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19 A |
| Current - Saturation (Isat) | 48.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 218MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.319" L x 0.319" W (8.10mm x 8.10mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
Submit your RFQ for 78433490036 and get a quote within 24 hours.
