WE-HCIA SMT FLAT WIRE HIGH CURRE

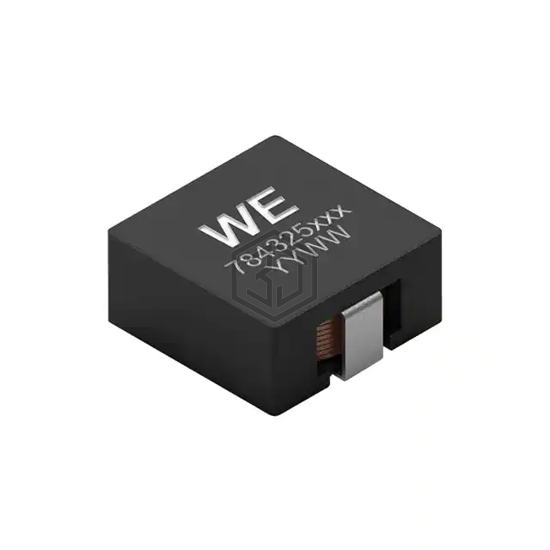

784325160 is a Fixed Inductors manufactured by Würth Elektronik. WE-HCIA SMT FLAT WIRE HIGH CURRE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 5 A.
In Stock: 699
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 16.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 7.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 38mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.394" W (10.50mm x 10.00mm) |
| Height - Seated (Max) | 0.182" (4.63mm) |
Submit your RFQ for 784325160 and get a quote within 24 hours.
