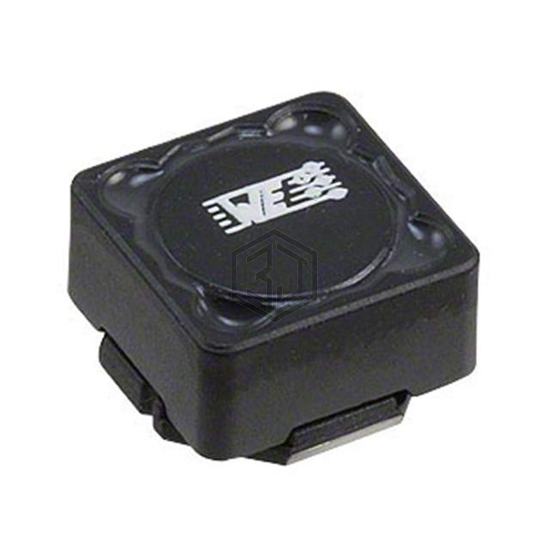

FIXED IND 2.2MH 260MA 6.5OHM SMD
7687714222 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2MH 260MA 6.5OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 260 mA.
In Stock: 435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 260 mA |
| Current - Saturation (Isat) | 370mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.5Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
