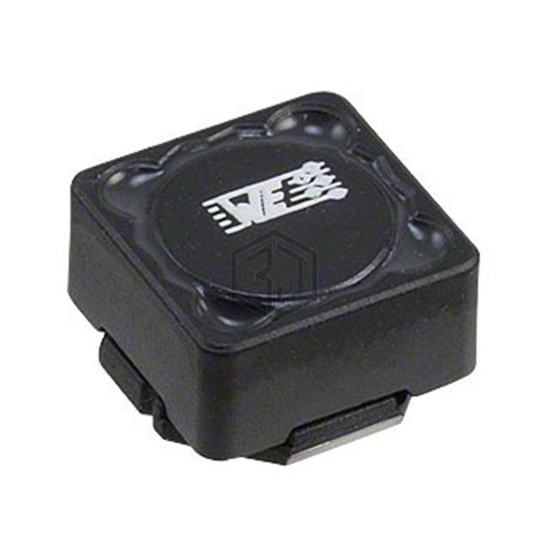

FIXED IND 1.5MH 320MA 4.6OHM SMD
7687714152 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5MH 320MA 4.6OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 320 mA.
In Stock: 3,952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | 460mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.6Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
