TRANSFORMER 1MH SMD

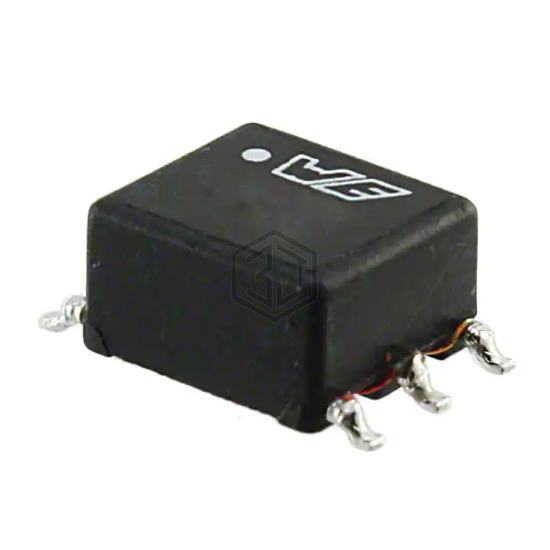

760390011 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANSFORMER 1MH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, size / dimension 0.265" L x 0.281" W (6.73mm x 7.14mm), frequency 10kHz.
In Stock: 25,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Forward, Push-Pull Converters |
| Intended Chipset | SN6501 |
| Chipset Manufacturer | Texas Instruments |
| Voltage - Primary | - |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | 1mH @ 10kHz |
| Frequency | 10kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.265" L x 0.281" W (6.73mm x 7.14mm) |
| Height - Seated (Max) | 0.170" (4.32mm) |
| Footprint | 0.265" L x 0.395" W (6.73mm x 10.05mm) |
| Style | - |
Submit your RFQ for 760390011 and get a quote within 24 hours.
