TRANS FLY BCR450 TDA4863 2.6MH

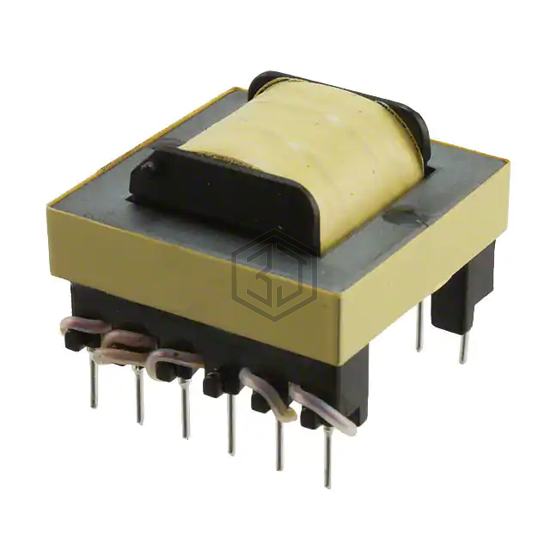

750845240 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANS FLY BCR450 TDA4863 2.6MH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, size / dimension 1.240" L x 1.386" W (31.50mm x 35.20mm), frequency 47kHz.
In Stock: 7,624
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | BCR450, TDA4863 |
| Chipset Manufacturer | Infineon Technologies |
| Voltage - Primary | 280 ~ 380V |
| Voltage - Auxiliary | 15V @ 20mA |
| Voltage - Isolation | 3600Vrms |
| Inductance @ Frequency | 2.6mH @ 10kHz |
| Frequency | 47kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 1.240" L x 1.386" W (31.50mm x 35.20mm) |
| Height - Seated (Max) | 0.950" (24.13mm) |
| Footprint | 1.240" L x 1.386" W (31.50mm x 35.20mm) |
| Style | - |
Submit your RFQ for 750845240 and get a quote within 24 hours.
