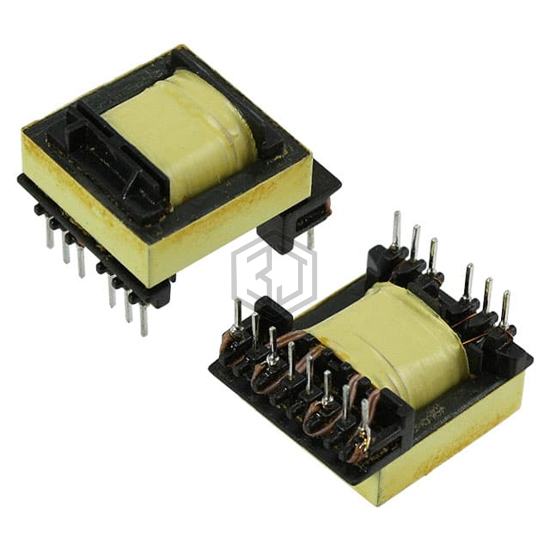

TRANS FLYBACK NXP UM10369 1.6MH
750841630 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANS FLYBACK NXP UM10369 1.6MH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, size / dimension 0.874" L x 0.984" W (22.20mm x 25.00mm), frequency 100kHz.
In Stock: 5,298
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | LED Drivers, AC/DC SMPS |
| Intended Chipset | TEA1522 |
| Chipset Manufacturer | NXP Semiconductors |
| Voltage - Primary | 125 ~ 375V |
| Voltage - Auxiliary | 12V @ 100mA |
| Voltage - Isolation | 4000Vrms |
| Inductance @ Frequency | 1.6mH @ 10kHz |
| Frequency | 100kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
| Height - Seated (Max) | 0.635" (16.13mm) |
| Footprint | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
| Style | - |
Submit your RFQ for 750841630 and get a quote within 24 hours.
