TRANS OFF LINE POWER PI TOP258

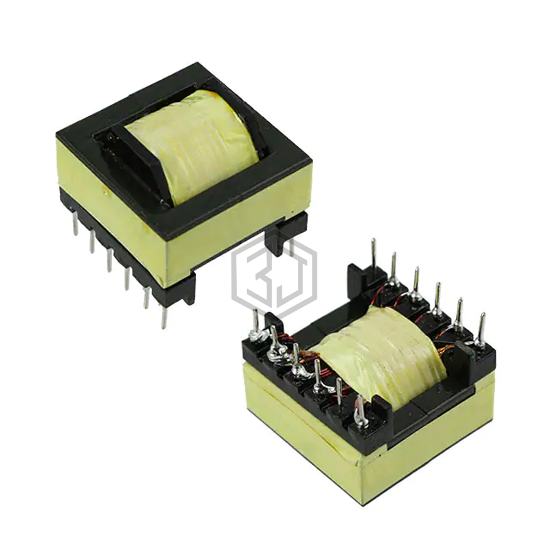

750811630 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANS OFF LINE POWER PI TOP258. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, size / dimension 1.220" L x 1.220" W (31.00mm x 31.00mm), frequency 132kHz.
In Stock: 949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | TOP258 |
| Chipset Manufacturer | Power Integrations |
| Voltage - Primary | 120 ~ 375V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 4000Vrms |
| Inductance @ Frequency | 1.04mH @ 10kHz |
| Frequency | 132kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 1.220" L x 1.220" W (31.00mm x 31.00mm) |
| Height - Seated (Max) | 0.989" (25.12mm) |
| Footprint | 1.220" L x 1.220" W (31.00mm x 31.00mm) |
| Style | - |
Submit your RFQ for 750811630 and get a quote within 24 hours.
