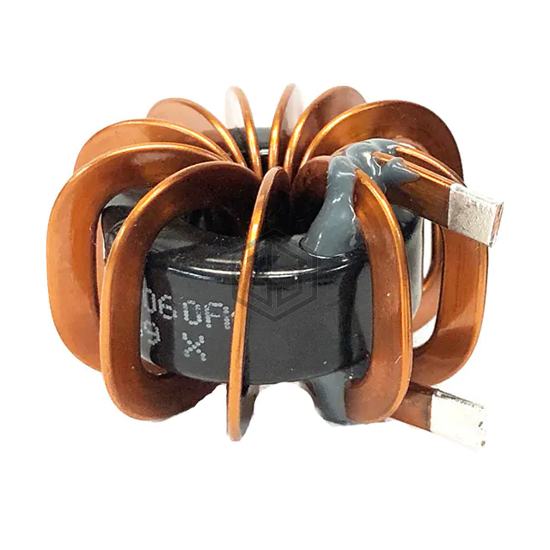

FIXED IND 9.5UH 15A 6 MOHM TH
750343811 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 9.5UH 15A 6 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical (Open), current rating (amps) 15 A.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 9.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.654" Dia x 1.060" W (42.00mm x 27.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
Submit your RFQ for 750343811 and get a quote within 24 hours.
