750342304

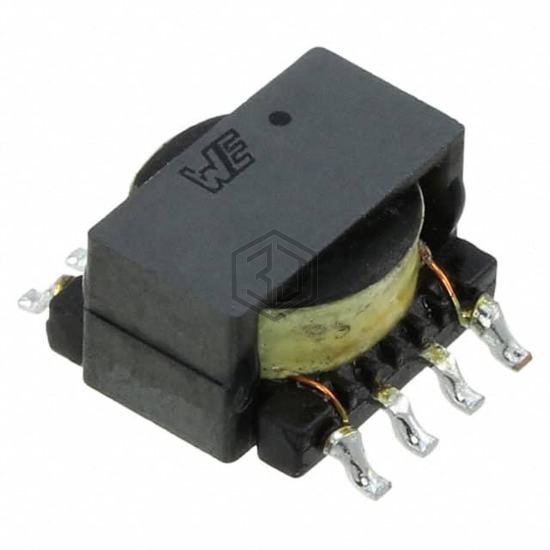

TRANSFORMER ER9.5/4/5D
750342304 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANSFORMER ER9.5/4/5D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C.
In Stock: 5,056
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | - |
| Chipset Manufacturer | - |
| Voltage - Primary | 10 ~ 36V |
| Voltage - Auxiliary | 7V @ 250mA |
| Voltage - Isolation | 1750Vrms |
| Inductance @ Frequency | 260µH @ 50kHz |
| Frequency | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | - |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Footprint | 0.394" L x 0.475" W (10.00mm x 12.07mm) |
| Style | - |
Frequently Asked Questions
750342304 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANSFORMER ER9.5/4/5D
The mounting type of 750342304 is Surface Mount.
The operating temperature range of 750342304 is -40°C ~ 125°C.
