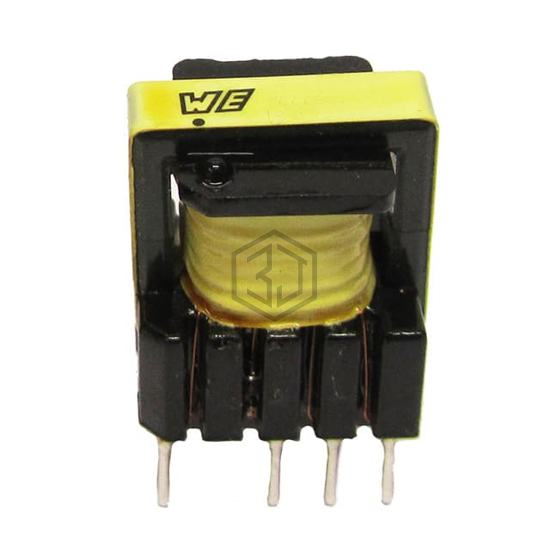

OFFLINE TRANSFORMER EE16/7/5 THT
750316878 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. OFFLINE TRANSFORMER EE16/7/5 THT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, size / dimension 0.545" L x 0.701" W (13.84mm x 17.81mm), frequency 80kHz.
In Stock: 7,645
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Flyback Converters |
| Intended Chipset | - |
| Chipset Manufacturer | STMicroelectronics |
| Voltage - Primary | 120 ~ 375VDC |
| Voltage - Auxiliary | 15V @ 10mA |
| Voltage - Isolation | - |
| Inductance @ Frequency | 2.2mH @ 100kHz |
| Frequency | 80kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 0.545" L x 0.701" W (13.84mm x 17.81mm) |
| Height - Seated (Max) | 0.888" (22.55mm) |
| Footprint | 0.555" L x 0.456" W (14.10mm x 11.58mm) |
| Style | Wirewound |
Submit your RFQ for 750316878 and get a quote within 24 hours.
