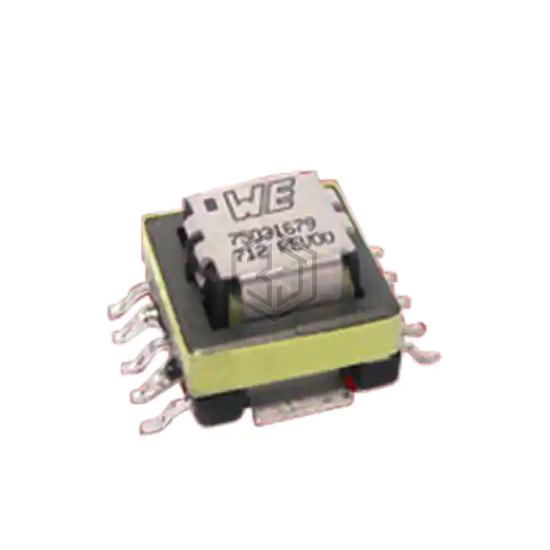

750316796 - Würth Elektronik - Current Sense Transformers

750316796

Würth Elektronik

CURRENT SENSE TRANSFORMER

750316796 is a Current Sense Transformers manufactured by Würth Elektronik. CURRENT SENSE TRANSFORMER. Key specifications: mounting type Surface Mount, current rating (amps) 40 A, size / dimension 0.570" L x 0.795" W (14.48mm x 20.20mm), termination style Gull Wing.

In Stock: 1,366

Product Attributes

AttributeValue
Product StatusObsolete
Frequency Range50kHz ~ 500kHz
TypeInvasive
Current Rating (Amps)40 A
Inductance22.4 mH
ET (Volt-Time)-
Turns Ratio - Primary:Secondary1:200
Current Ratio-
DC Resistance (DCR)280mOhm
Ratings-
Mounting TypeSurface Mount
Size / Dimension0.570" L x 0.795" W (14.48mm x 20.20mm)
Height - Seated (Max)0.413" (10.50mm)
Termination StyleGull Wing

Frequently Asked Questions

750316796 is a Current Sense Transformers manufactured by Würth Elektronik. CURRENT SENSE TRANSFORMER

The mounting type of 750316796 is Surface Mount.

The current rating of 750316796 is 40 A.

The size of 750316796 is 0.570" L x 0.795" W (14.48mm x 20.20mm).

Yes, 750316796 is listed as Obsolete. Consider requesting a quote for alternative parts.
