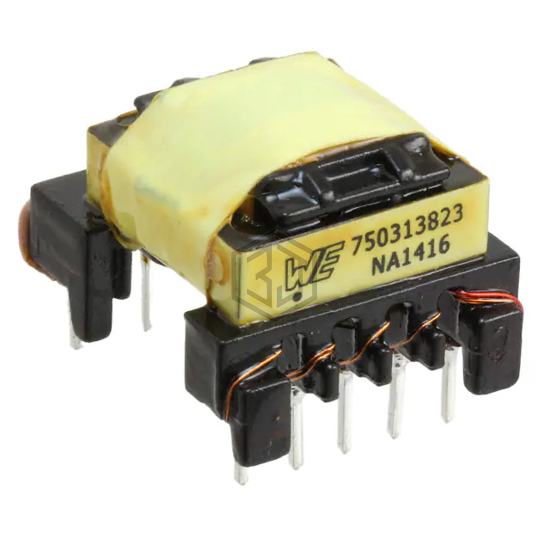

750313823 - Würth Elektronik - Switching Converter, SMPS Transformers

750313823

Würth Elektronik

WE-UNIT OFFLINE TRANSFORMER

750313823 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. WE-UNIT OFFLINE TRANSFORMER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, frequency 80kHz.

In Stock: 2,001

Product Attributes

AttributeValue
Product StatusActive
TypeFor AC/DC Converters
ApplicationsFlyback Converters
Intended ChipsetUCC287xx, UCC289xx
Chipset ManufacturerTexas Instruments
Voltage - Primary120 ~ 375V
Voltage - Auxiliary25V @ 10mA
Voltage - Isolation4500Vrms
Inductance @ Frequency367µH @ 10kHz
Frequency80kHz
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Size / Dimension-
Height - Seated (Max)0.655" (16.64mm)
Footprint0.800" L x 0.960" W (20.32mm x 24.38mm)
Style-

Frequently Asked Questions

750313823 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. WE-UNIT OFFLINE TRANSFORMER

The mounting type of 750313823 is Through Hole.

The operating temperature range of 750313823 is -40°C ~ 125°C.

The frequency of 750313823 is 80kHz.
