FIXED IND 750UH 250MA 570MOHM TH

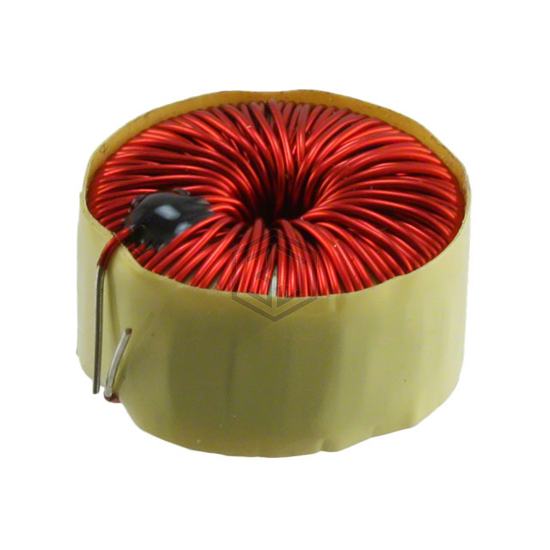

750311431 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 750UH 250MA 570MOHM TH. Key specifications: mounting type Through Hole, package / case Radial, Vertical (Open), current rating (amps) 250 mA, size / dimension 0.580" Dia x 0.365" W (14.73mm x 9.27mm).
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 750 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 570mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.580" Dia x 0.365" W (14.73mm x 9.27mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 750311431 and get a quote within 24 hours.
