TRANS FLYBACK NXPSSL2101 SSL2102

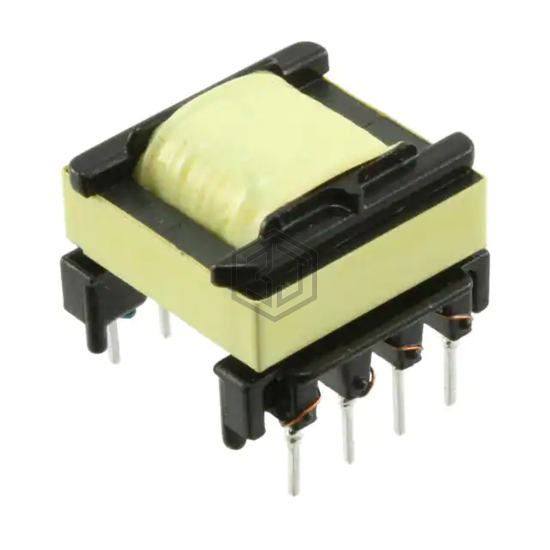

750311402 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANS FLYBACK NXPSSL2101 SSL2102. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, size / dimension 0.707" L x 0.799" W (17.96mm x 20.30mm), frequency 60kHz.
In Stock: 3,554
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For AC/DC Converters |
| Applications | LED Drivers, AC/DC SMPS |
| Intended Chipset | SSL2101, SSL2102 |
| Chipset Manufacturer | NXP Semiconductors |
| Voltage - Primary | 120 ~ 375V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 4000Vrms |
| Inductance @ Frequency | 1.48mH @ 10kHz |
| Frequency | 60kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Size / Dimension | 0.707" L x 0.799" W (17.96mm x 20.30mm) |
| Height - Seated (Max) | 0.568" (14.43mm) |
| Footprint | 0.707" L x 0.799" W (17.96mm x 20.30mm) |
| Style | - |
