TRANS FLYBACK POE 127UH SMD

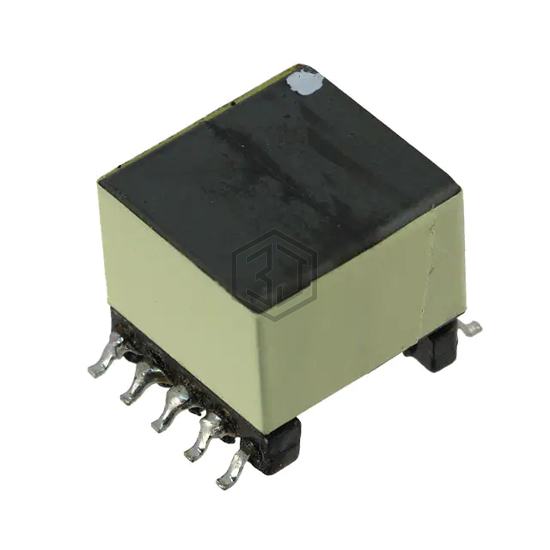

749119933 is a Switching Converter, SMPS Transformers manufactured by Würth Elektronik. TRANS FLYBACK POE 127UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, size / dimension 0.530" L x 0.591" W (13.46mm x 15.00mm), frequency 200 ~ 500kHz.
In Stock: 396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | For DC/DC Converters |
| Applications | Power Over Ethernet (PoE) |
| Intended Chipset | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 |
| Chipset Manufacturer | - |
| Voltage - Primary | 36 ~ 57V |
| Voltage - Auxiliary | 12V @ 15mA |
| Voltage - Isolation | 1500Vrms |
| Inductance @ Frequency | 127µH @ 100kHz |
| Frequency | 200 ~ 500kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.530" L x 0.591" W (13.46mm x 15.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Footprint | 0.530" L x 0.713" W (13.46mm x 18.10mm) |
| Style | - |
Submit your RFQ for 749119933 and get a quote within 24 hours.
