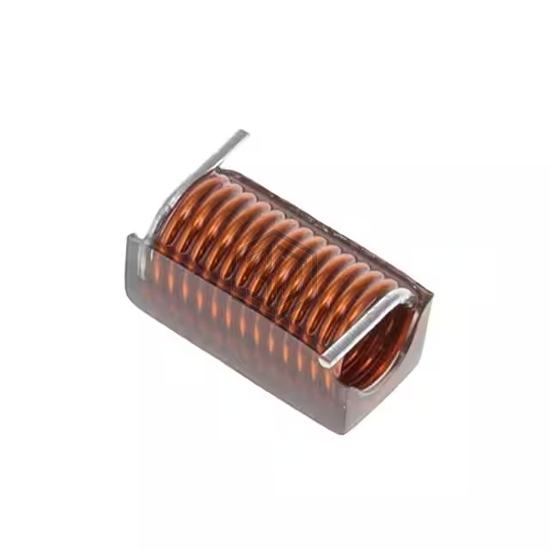

FIXED IND 222NH 3A 35 MOHM SMD
744918222 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 222NH 3A 35 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3 A.
In Stock: 1,751
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 222 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 35mOhm Max |
| Q @ Freq | 100 @ 50MHz |
| Frequency - Self Resonant | 730MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5910 |
| Size / Dimension | 0.415" L x 0.250" W (10.55mm x 6.35mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for 744918222 and get a quote within 24 hours.
