FIXED IND 100NH 470MA 540MOHM SM

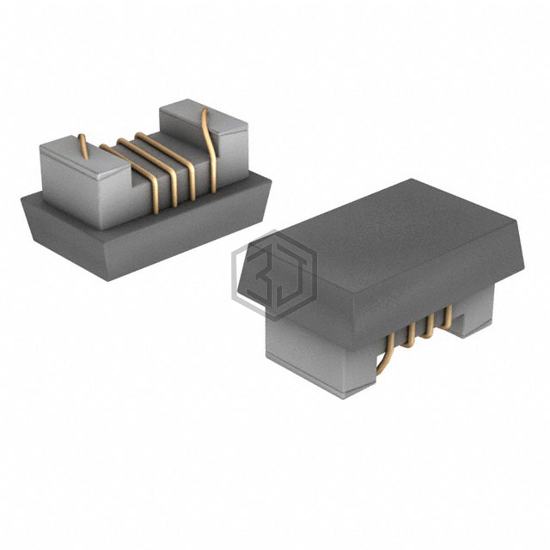

744917210 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100NH 470MA 540MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 470 mA.
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 100 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 470 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 540mOhm Max |
| Q @ Freq | 35 @ 250MHz |
| Frequency - Self Resonant | 1.7GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.067" L x 0.043" W (1.70mm x 1.10mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
