FIXED IND 47NH 420MA 580MOHM SMD

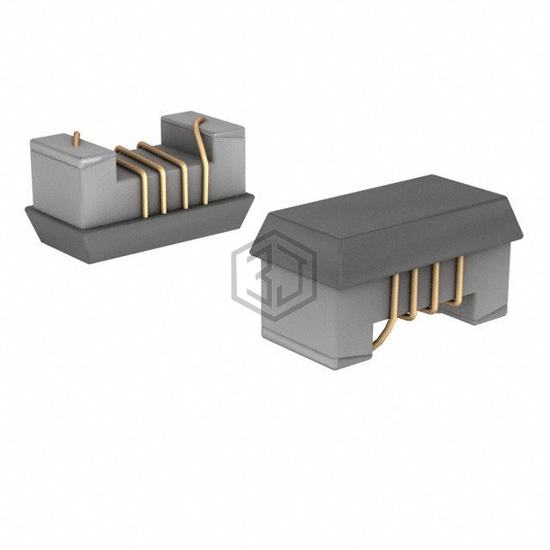

744916147 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 47NH 420MA 580MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0402 (1006 Metric), current rating (amps) 420 mA.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 47 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 580mOhm Max |
| Q @ Freq | 28 @ 250MHz |
| Frequency - Self Resonant | 2.4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 0402 (1006 Metric) |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for 744916147 and get a quote within 24 hours.
