FIXED IND 66NH 32A 0.99 MOHM SMD

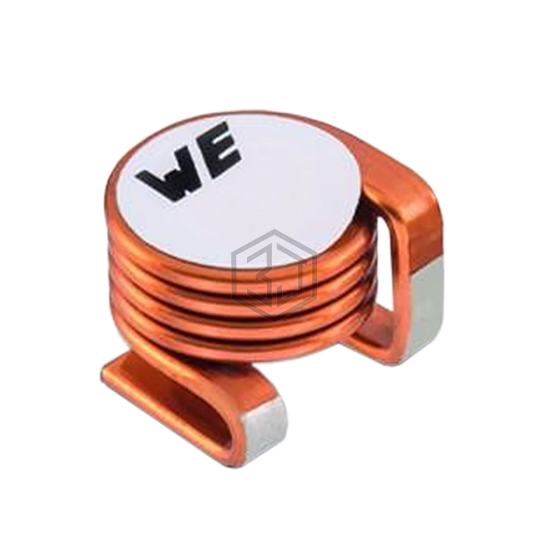

7449152066 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 66NH 32A 0.99 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 32 A.
In Stock: 339
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 66 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.99mOhm Max |
| Q @ Freq | 245 @ 100MHz |
| Frequency - Self Resonant | 457MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.472" L x 0.453" W (12.00mm x 11.50mm) |
| Height - Seated (Max) | 0.346" (8.80mm) |
Submit your RFQ for 7449152066 and get a quote within 24 hours.
