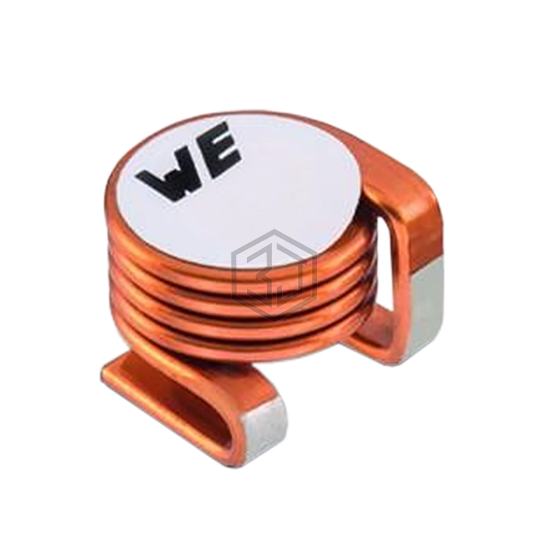

FIXED IND 42NH 34A 0.77 MOHM SMD
7449152042 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 42NH 34A 0.77 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 34 A.
In Stock: 291
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 42 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 34 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.77mOhm Max |
| Q @ Freq | 240 @ 100MHz |
| Frequency - Self Resonant | 605MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1212 |
| Size / Dimension | 0.472" L x 0.453" W (12.00mm x 11.50mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for 7449152042 and get a quote within 24 hours.
