FIXED IND 146NH 19A 3.33MOHM SMD

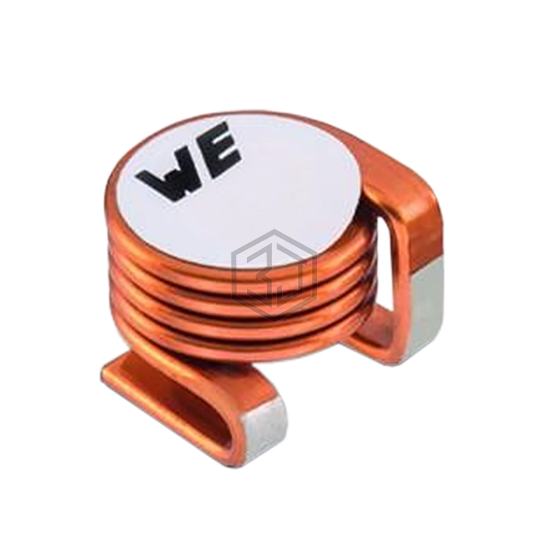

7449150146 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 146NH 19A 3.33MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 19 A.
In Stock: 686
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 146 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.33mOhm Max |
| Q @ Freq | 163 @ 100MHz |
| Frequency - Self Resonant | 332MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1010 |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for 7449150146 and get a quote within 24 hours.
