FIXED IND 111NH 22A 2.11MOHM SMD

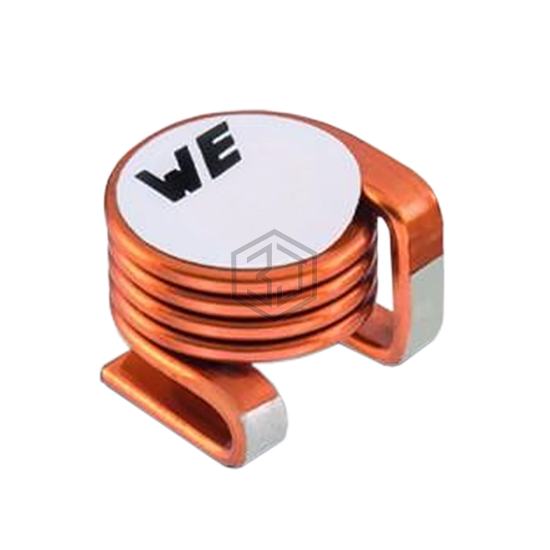

7449150111 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 111NH 22A 2.11MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 22 A.
In Stock: 1,125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 111 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.11mOhm Max |
| Q @ Freq | 186 @ 100MHz |
| Frequency - Self Resonant | 374MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1010 |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) |
Submit your RFQ for 7449150111 and get a quote within 24 hours.
