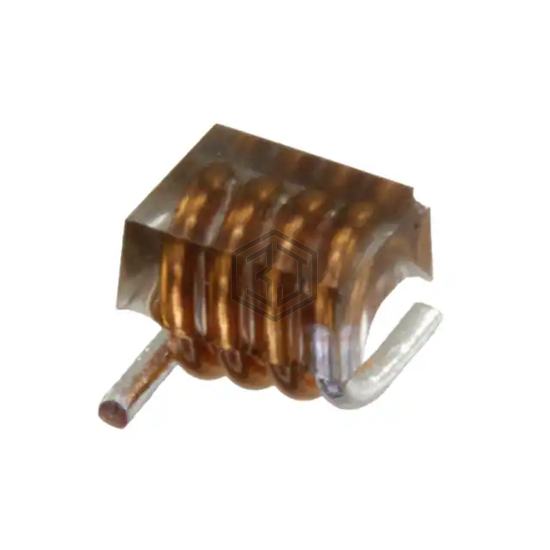

FIXED IND 12.5NH 4A 3.4 MOHM SMD
744913112 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 12.5NH 4A 3.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4 A.
In Stock: 1,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 12.5 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.4mOhm Max |
| Q @ Freq | 137 @ 150MHz |
| Frequency - Self Resonant | 3.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.145" L x 0.120" W (3.68mm x 3.05mm) |
| Height - Seated (Max) | 0.125" (3.18mm) |
