FIXED IND 100NH 1.7A 12.3MOHM SM

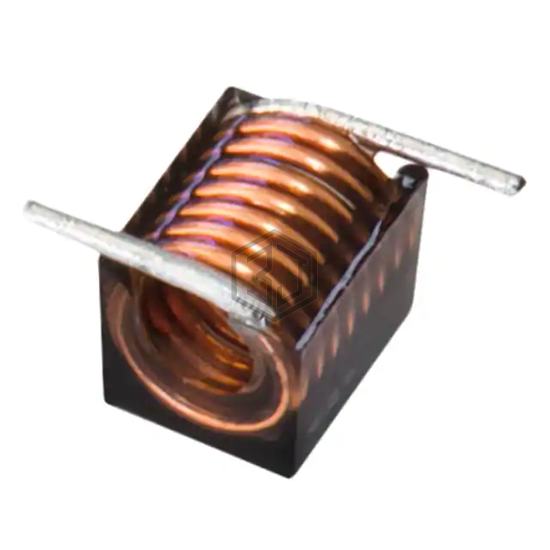

744912210 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100NH 1.7A 12.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.7 A.
In Stock: 3,035
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 12.3mOhm Max |
| Q @ Freq | 100 @ 150MHz |
| Frequency - Self Resonant | 1.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4248 |
| Size / Dimension | 0.190" L x 0.150" W (4.83mm x 3.81mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for 744912210 and get a quote within 24 hours.
