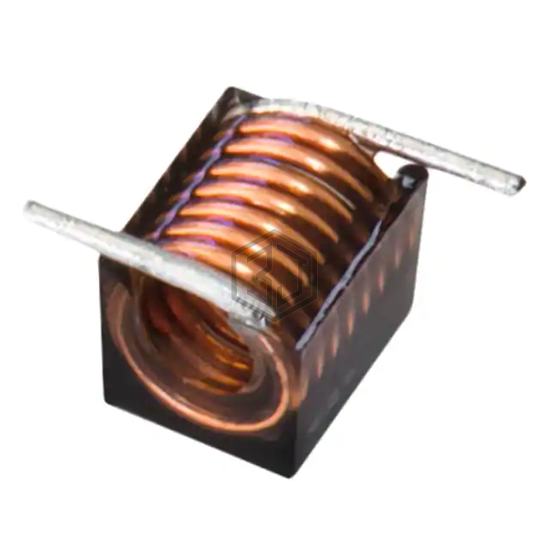

FIXED IND 9.85NH 1.6A 13MOHM SMD
744911098 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 9.85NH 1.6A 13MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.6 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 9.85 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | 100 @ 800MHz |
| Frequency - Self Resonant | 5.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 800 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1340 |
| Size / Dimension | 0.159" L x 0.056" W (4.04mm x 1.42mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for 744911098 and get a quote within 24 hours.
