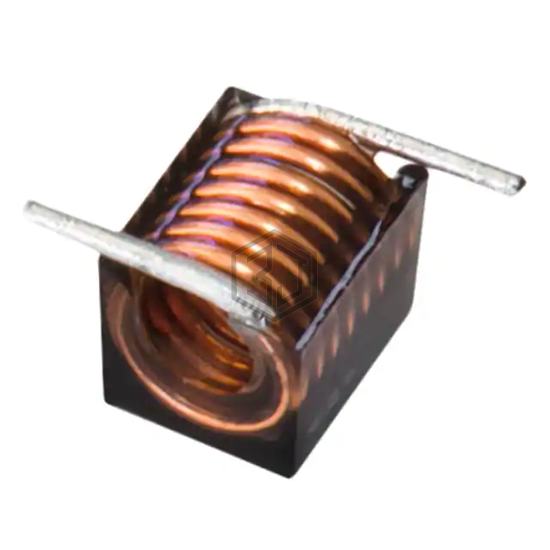

FIXED IND 2.55NH 1.6A 5 MOHM SMD
744910025 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.55NH 1.6A 5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.6 A.
In Stock: 4,797
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 2.55 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5mOhm Max |
| Q @ Freq | 100 @ 800MHz |
| Frequency - Self Resonant | 8.2GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 800 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1322 |
| Size / Dimension | 0.087" L x 0.056" W (2.21mm x 1.42mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for 744910025 and get a quote within 24 hours.
