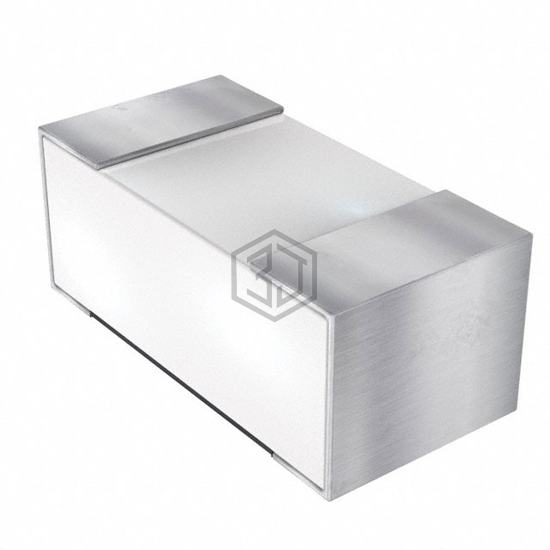

FIXED IND 3.3NH 150MA 1 OHM SMD
744900033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3NH 150MA 1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0201 (0603 Metric), current rating (amps) 150 mA.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 3.3 nH |
| Tolerance | ±0.2nH |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
Submit your RFQ for 744900033 and get a quote within 24 hours.
