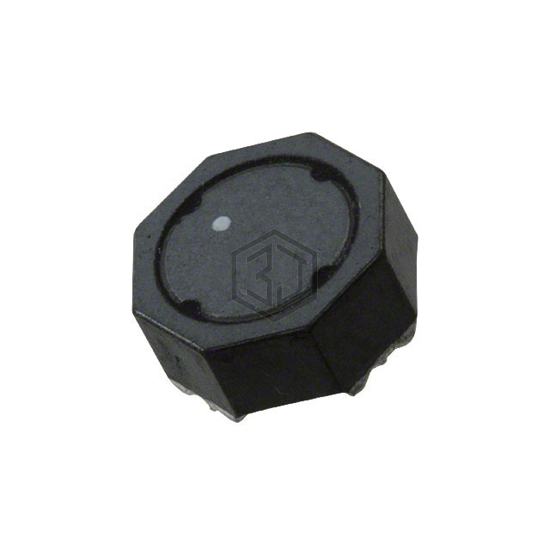

INDUCT ARRAY 2 COIL 3.6UH SMD
74489440036 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 3.6UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.315" L x 0.315" W (8.00mm x 8.00mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 3.6 µH |
| Inductance - Connected In Series | 14.4 µH |
| Tolerance | ±30% |
| Current Rating - Parallel | 2.3 A |
| Current Rating - Series | 1.15 A |
| Current Saturation - Parallel | 4.6 A |
| Current Saturation - Series | 2.3 A |
| DC Resistance (DCR) - Parallel | 53mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height | 0.150" (3.80mm) |
Submit your RFQ for 74489440036 and get a quote within 24 hours.
