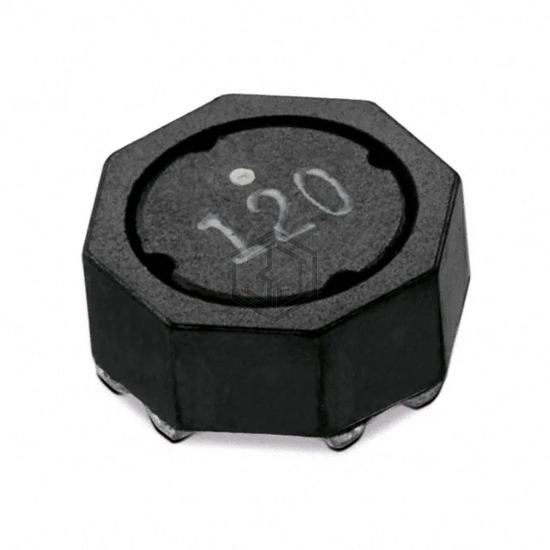

INDUCT ARRAY 2 COIL 5.6UH SMD
74489430056 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 5.6UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.315" L x 0.315" W (8.00mm x 8.00mm).
In Stock: 550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 5.6 µH |
| Inductance - Connected In Series | 22.4 µH |
| Tolerance | ±30% |
| Current Rating - Parallel | 1.45 A |
| Current Rating - Series | 725 mA |
| Current Saturation - Parallel | 2.2 A |
| Current Saturation - Series | 1.1 A |
| DC Resistance (DCR) - Parallel | 131mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height | 0.083" (2.10mm) |
Submit your RFQ for 74489430056 and get a quote within 24 hours.
