INDUCTOR ARRAY 2 COIL 22UH SMD

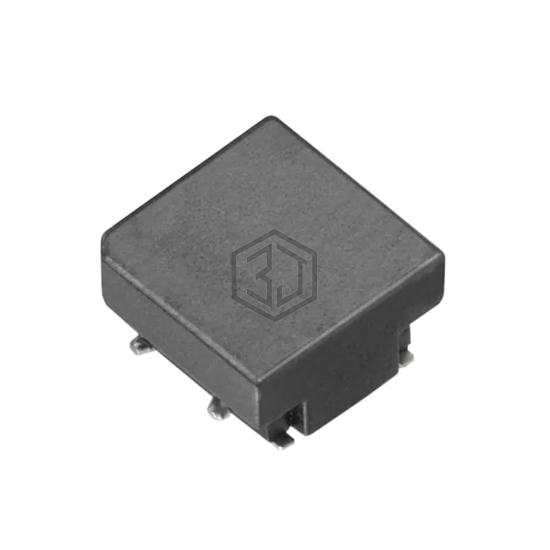

7448845220 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCTOR ARRAY 2 COIL 22UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.197" L x 0.197" W (5.00mm x 5.00mm).
In Stock: 9,202
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 22 µH |
| Inductance - Connected In Series | - |
| Tolerance | ±20% |
| Current Rating - Parallel | 0.8 A |
| Current Rating - Series | - |
| Current Saturation - Parallel | 1 A |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 600mOhm |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.118" (3.00mm) |
Submit your RFQ for 7448845220 and get a quote within 24 hours.
