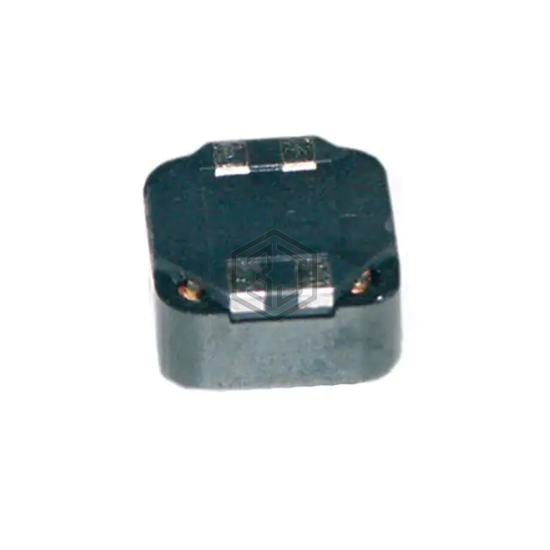

INDUCT ARRAY 2 COIL 5.6UH SMD
744877005 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 5.6UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.287" L x 0.287" W (7.30mm x 7.30mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 5.6 µH |
| Inductance - Connected In Series | 22.4 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.9 A |
| Current Rating - Series | 950 mA |
| Current Saturation - Parallel | 3.5 A |
| Current Saturation - Series | 1.75 A |
| DC Resistance (DCR) - Parallel | 95mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height | 0.189" (4.80mm) |
Submit your RFQ for 744877005 and get a quote within 24 hours.
