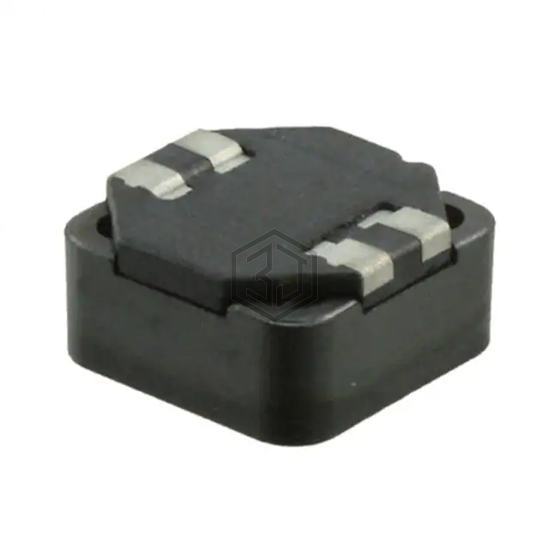

INDUCT ARRAY 2 COIL 2.4UH SMD
744874002 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 2.4UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 2.4 µH |
| Inductance - Connected In Series | 9.6 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 5.5 A |
| Current Rating - Series | 2.75 A |
| Current Saturation - Parallel | 11.5 A |
| Current Saturation - Series | 5.75 A |
| DC Resistance (DCR) - Parallel | 17.5mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.256" (6.50mm) |
