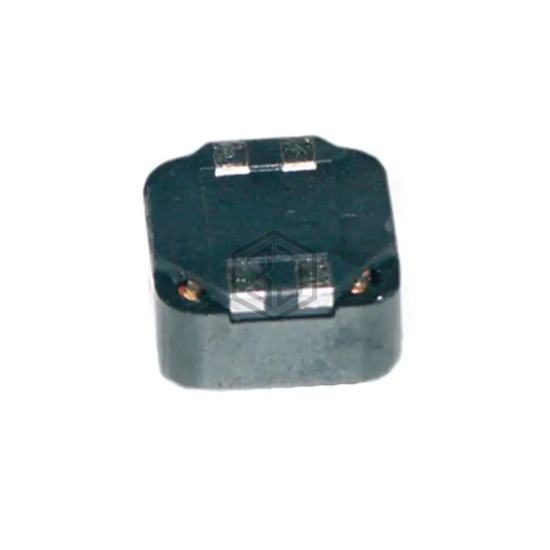

INDUCT ARRAY 2 COIL 33UH SMD
744873330 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 33UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 609
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 33 µH |
| Inductance - Connected In Series | 132 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.25 A |
| Current Rating - Series | 1.125 A |
| Current Saturation - Parallel | 3.9 A |
| Current Saturation - Series | 1.95 A |
| DC Resistance (DCR) - Parallel | 105mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.335" (8.50mm) |
