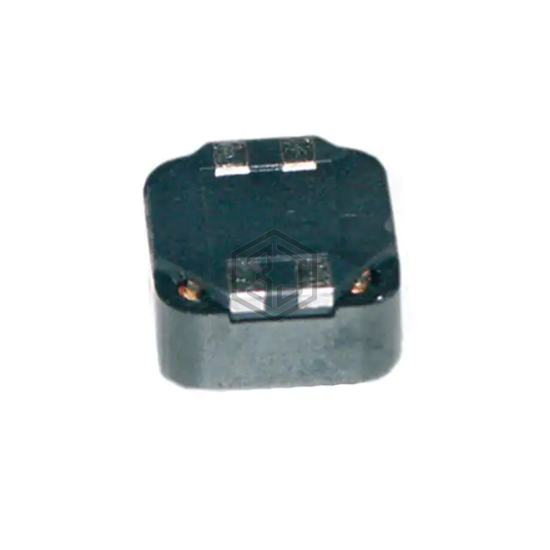

INDUCT ARRAY 2 COIL 1.5UH SMD
744873001 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 1.5UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 1.5 µH |
| Inductance - Connected In Series | 6 µH |
| Tolerance | ±30% |
| Current Rating - Parallel | 6.25 A |
| Current Rating - Series | 3.125 A |
| Current Saturation - Parallel | 18 A |
| Current Saturation - Series | 9 A |
| DC Resistance (DCR) - Parallel | 15mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.335" (8.50mm) |
Submit your RFQ for 744873001 and get a quote within 24 hours.
