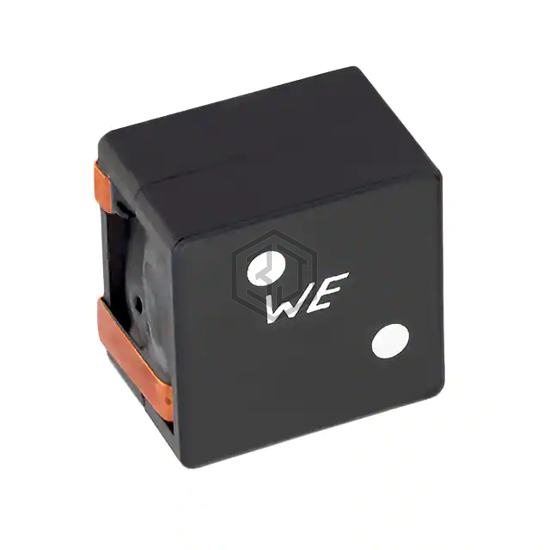

INDUCT ARRAY 2 COIL 10UH SMD
74485542101 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 10UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 4-SMD, size / dimension 0.827" L x 0.728" W (21.00mm x 18.50mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 10 µH |
| Inductance - Connected In Series | - |
| Tolerance | ±20% |
| Current Rating - Parallel | 11.5 A |
| Current Rating - Series | - |
| Current Saturation - Parallel | 22 A |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 11mOhm |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Size / Dimension | 0.827" L x 0.728" W (21.00mm x 18.50mm) |
| Height | 0.531" (13.50mm) |
Submit your RFQ for 74485542101 and get a quote within 24 hours.
