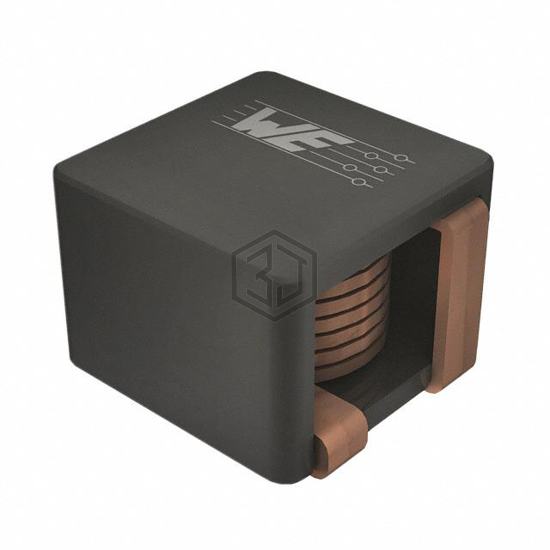

INDUCT ARRAY 2 COIL 2.9UH SMD
74485540290 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 2.9UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 4-SMD, size / dimension 0.610" L x 0.520" W (15.50mm x 13.20mm).
In Stock: 278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 2.9 µH |
| Inductance - Connected In Series | 11.6 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 17 A |
| Current Rating - Series | 8.5 A |
| Current Saturation - Parallel | 29 A |
| Current Saturation - Series | 14.5 A |
| DC Resistance (DCR) - Parallel | 8.96mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Size / Dimension | 0.610" L x 0.520" W (15.50mm x 13.20mm) |
| Height | 0.413" (10.50mm) |
