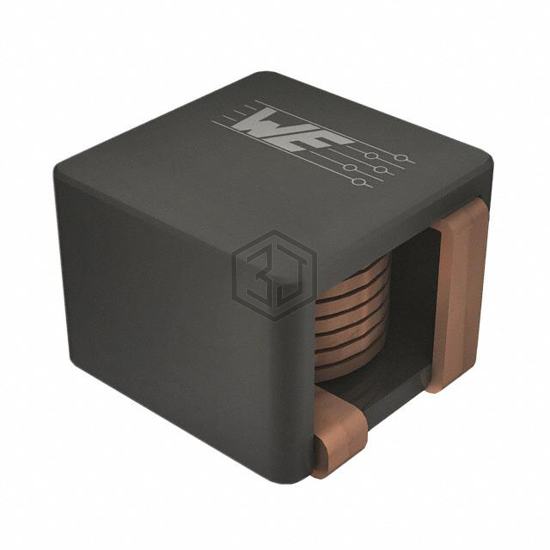

INDUCT ARRAY 2 COIL 800NH SMD
74485540080 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 800NH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 4-SMD, size / dimension 0.610" L x 0.520" W (15.50mm x 13.20mm).
In Stock: 1,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 800 nH |
| Inductance - Connected In Series | 3.2 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 28 A |
| Current Rating - Series | 14 A |
| Current Saturation - Parallel | 62 A |
| Current Saturation - Series | 31 A |
| DC Resistance (DCR) - Parallel | 2.56mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Size / Dimension | 0.610" L x 0.520" W (15.50mm x 13.20mm) |
| Height | 0.413" (10.50mm) |
