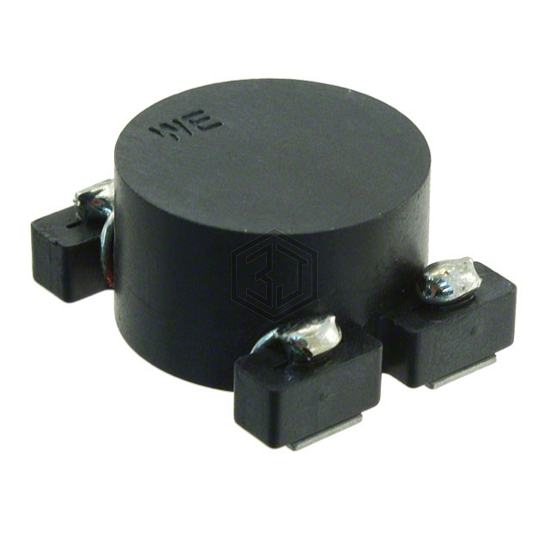

INDUCT ARRAY 2 COIL 390NH SMD
744851039 is a Arrays, Signal Transformers manufactured by Würth Elektronik. INDUCT ARRAY 2 COIL 390NH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.906" L x 0.728" W (23.00mm x 18.50mm).
In Stock: 8,699
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 390 nH |
| Inductance - Connected In Series | 1.56 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 10.6 A |
| Current Rating - Series | 5.3 A |
| Current Saturation - Parallel | 50 A |
| Current Saturation - Series | 25 A |
| DC Resistance (DCR) - Parallel | 6mOhm Max |
| DC Resistance (DCR) - Series | - |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.906" L x 0.728" W (23.00mm x 18.50mm) |
| Height | 0.453" (11.50mm) |
Submit your RFQ for 744851039 and get a quote within 24 hours.
