FIXED IND 10UH 650MA 625MOHM SMD

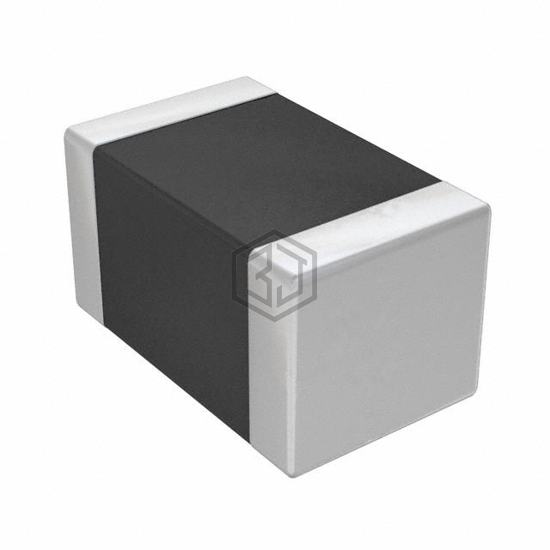

74479777310 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 650MA 625MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 650 mA.
In Stock: 4,065
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 125mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 625mOhm Max |
| Q @ Freq | 35 @ 1MHz |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
Submit your RFQ for 74479777310 and get a quote within 24 hours.
