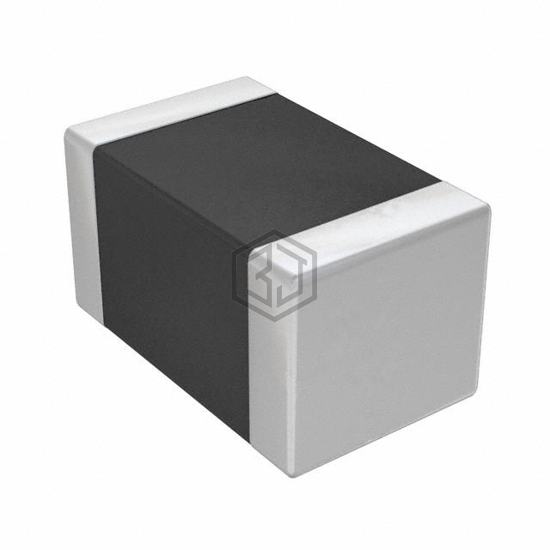

FIXED IND 1.5UH 1.1A 200MOHM SMD
74479775215 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5UH 1.1A 200MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 1.1 A.
In Stock: 1,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 800mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 20 @ 1MHz |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.730" L x 0.600" W (18.54mm x 15.24mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for 74479775215 and get a quote within 24 hours.
