FIXED IND 330NH 1.4A 100MOHM SMD

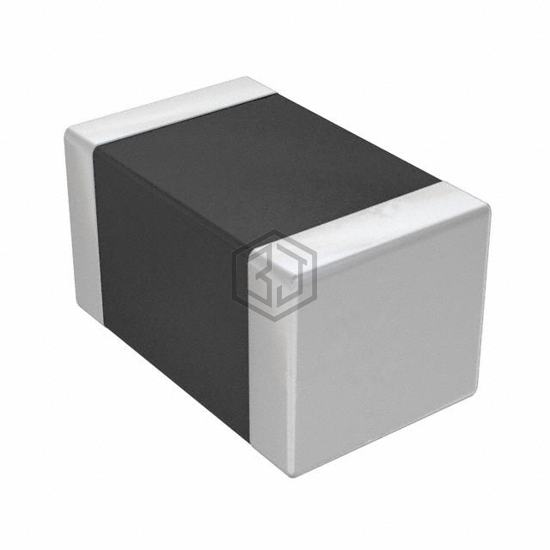

74479773133 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 330NH 1.4A 100MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 1.4 A.
In Stock: 4,825
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | 1.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | 8 @ 1MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for 74479773133 and get a quote within 24 hours.
