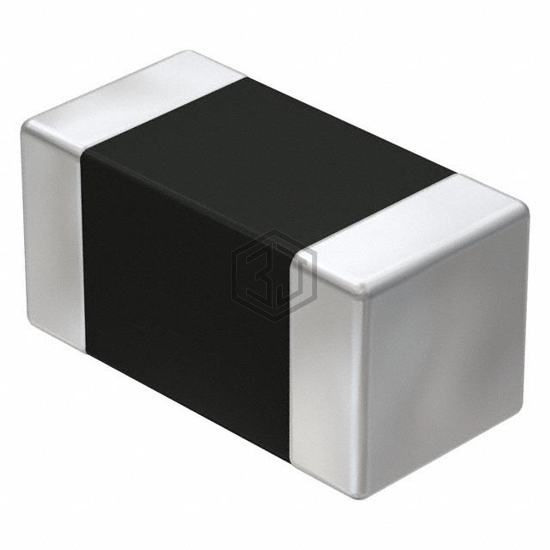

FIXED IND 680NH 1A 220 MOHM SMD
74479762168 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 680NH 1A 220 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 1 A.
In Stock: 2,416
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 700mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm |
| Q @ Freq | 9 @ 1MHz |
| Frequency - Self Resonant | 150MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for 74479762168 and get a quote within 24 hours.
