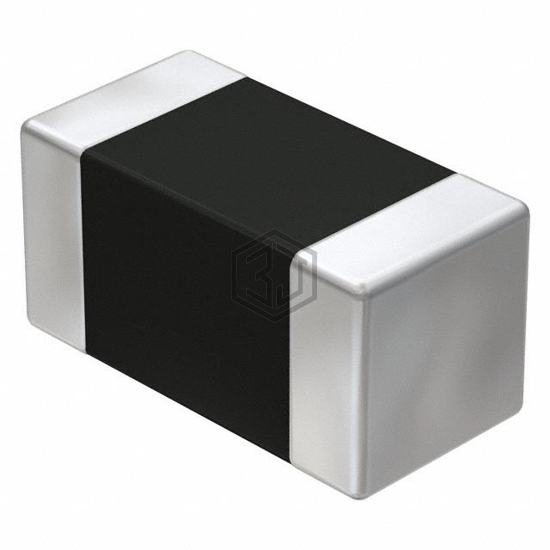

FIXED IND 220NH 1.2A 120MOHM SMD
74479762122 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 1.2A 120MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0603 (1608 Metric), current rating (amps) 1.2 A.
In Stock: 6,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm |
| Q @ Freq | 7 @ 1MHz |
| Frequency - Self Resonant | 250MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for 74479762122 and get a quote within 24 hours.
