FIXED IND 2.7UH 50MA 600MOHM SMD

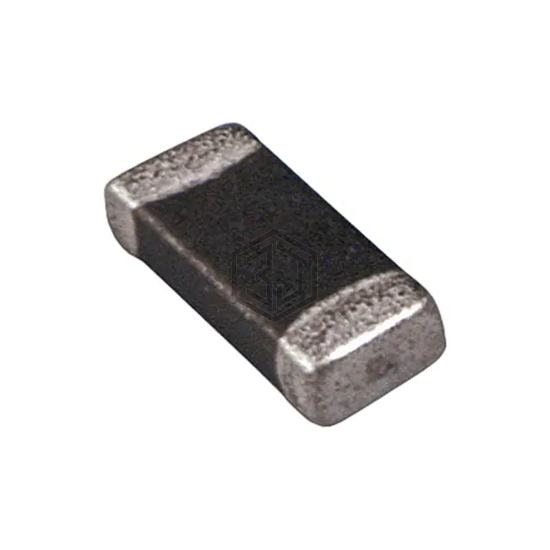

74479157 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.7UH 50MA 600MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), current rating (amps) 50 mA.
In Stock: 2,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 2.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 50 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 45 @ 10MHz |
| Frequency - Self Resonant | 52MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for 74479157 and get a quote within 24 hours.
